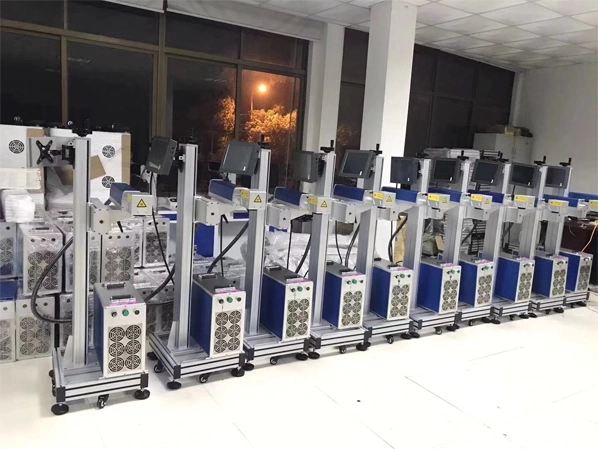

Plastic Pipe Laser Printer

Fiber Laser Marking Machine adopts inter-national most advanced technology and the laser source is fiber with USA technology, life-time can reach to 100,000 hours, 8-10 years without any consumables and maintenance.

For marking information on pipes, such as logos, codes, and serial numbers, a Laser Printer for Pipe is utilized. This device produces high-quality, long-lasting inscriptions on the surface of pipes by etching text and images with a very precise laser beam. The building, oil & gas, and plumbing sectors make extensive use of Laser Printer for Pipe. It is a cost-effective alternative for pipe marking since it has versatile marking options, minimal maintenance, and high-speed printing.

Feature of Laser Printer For Pipe


  • This laser printer for HDPE pipes and PVC pipes is small in size, easy to install, has no maintenance, less power consumption.

  • Unique integrated fully integrated design, optical, electronic, and mechanical devices are highly integrated.

  • Our PVC/HDPE pipe laser printing machine is equipped with a high-speed galvanometer laser marking header, marking speed, with a high-quality beam, long service life, installation characteristics of flexible and convenient maintenance, and so on.

  • Special laser printing software, simple operation, no poison, no pollution, high stability, and low failure rate.

  • Our laser printer for PVC pipes can meet the needs of more than most of the various types of production lines.

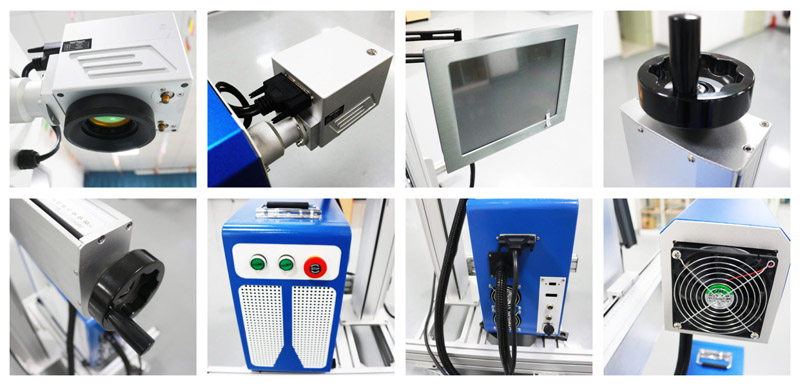

PVC Pipe Laser Printing Machine Components




As our hot sale fiber laser printer, our Pipe Laser Printing Machine is equipped with a range of advanced components to ensure efficient and accurate operation.

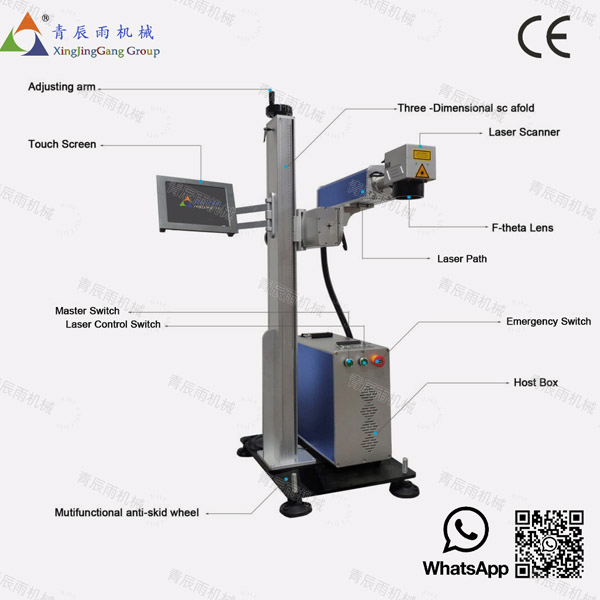

At the heart of this laser printing machine for plastic pipe is its sophisticated control system, featuring components such as an adjusting arm, three-dimensional scaffold, and touch screen interface, allowing users to easily adjust and control the printing process, ensuring optimal results with every use.


Our scan galvanometer, manufactured by OUYA/SINO GALVO, excels in operational stability, positioning precision, marking speed, and interference resistance.


A laser scanner and F-theta lens work together to accurately project text, logos, and other markings onto the surface of PVC pipes. This enhances the printing capabilities of our PVC/HDPE pipe laser printing machine. The laser path ensures consistent printing quality across each pipe, while the master switch and laser control switch provide convenient control over the printing process.


Our fiber tube laser features a Double Red Dot Focusing system, with a red guideline and red dot for easy focusing.


Our PVC Pipe Laser Printing Machine is equipped with an emergency switch to quickly halt operations in case of any unforeseen issues or emergencies.



Technical Specification of Laser Printer For Pipe


Parameter
(Order number)(Designation)(Parameter)
1Model numberYC20XX
2TypeFiber laser printing machine
3Laser power20/30/50 W
4Laser wave length1064nm
5Marking depth≤0.01MM
6Marking speed≤7000mm/s
7Marking line width0.01-0.2mm
8Min character size0.015mm
9Repeat accuracy0.01mm
10Power sourceMingWei power source
11Laser headSino galvo/Ouya
12Size520* 680* 1360
13Accessorya set of tools, operation manual, fuse
14Communication portUSB
15Levels of protectionIP45
16Environment condition-10-55°C
17Weight65KG
18Control softwareHigh speed printing control system
19Working lifeLasers in theory for 100 thousand hours


Parameter and configuration
Project(Designation)
Laser sourceRAYCUS
Scan galvanometerOUYA/SINO GALVO
industrial Computer10 inch High speed printing control system
Display10 inch
Power supplierMeanwell
Full frameHND LASER
Aluminum stand up and downHND LASER
Master powerSchneider/Delixi
Focus systemDouble red dot focus system
LensWavelength/Carman haas
Encoder and seniorYes



Plastic pipe reference
ModelLaserModelMaterial and colorSpeed
m/min
YC2020Fiber laser Power: 20WPE Black0.1-15
PPR-Orange、Gray、white、Blue、Green0.1-5
PVC-Gray、white、Red0.1-10
YC2030Fiber laser Power: 30WPE-Black0.1-25
PPR-Orange、Gray、white、Blue、Green0.1-15
PVC-Gray、white、Red0.1-15
YC2050Fiber laserPower: 50WPE-Black0.1-38
PPR-Orange、Gray、white、Blue、Green0.1-30
PVC-Gray、white、Red0.1-25





Advantages of Laser Printer For Pipe over Conventional Marking Techniques for Pipes

Laser Printer for Pipe offers significant advantages over conventional marking techniques, such as stickers and paint, for pipe marking. Firstly, pipe laser printer is a permanent marking solution as the laser marks are etched onto the surface of the pipe, unlike stickers that can come off or paint that can wear off. Secondly, the laser beam can mark small text, graphics, and codes with high precision, making it suitable for marking complex information. Thirdly, laser printing is a non-contact process and does not deform or damage the pipe's surface, ensuring the quality of the pipe is not compromised. Finally, laser printing is faster and more efficient than conventional marking techniques, reducing product delivery times and increasing productivity.

Role of Laser Printers in Pipe Construction and Installation

Laser Printers for Pipe are crucial to the design and installation of pipes. Using laser printers, pipes can be marked with important information such as codes, serial numbers, and safety regulations. The high-precision laser etches the markings onto the surface of the pipe, ensuring there is no degradation of the pipe's integrity. Clear and permanent markings on pipes provide vital information for the installation team and future maintenance, ensuring safe and efficient handling of pipes. Laser printing technology reduces the risk of errors and provides a cost-effective, environmentally-friendly solution for pipe marking.


Video of Laser Printer For Pipe

FAQs Of Laser Printer For Pipe

  • Is the operation of Laser Printer for Pipe safe for human operators? Is the operation of Laser Printer for Pipe safe for human operators?

    Yes, Laser Printers for Pipe are safe to operate because they are designed with safety features that prevent accidents during operation. However, it is important to strictly follow the manufacturer's instructions and guidelines to ensure safe operation.


  • What types of materials can a Laser Printer for Pipe mark? What types of materials can a Laser Printer for Pipe mark?

    Laser Printers for Pipe can mark various materials, including plastic, metal, stainless steel, and pipes made of different types of materials, such as PVC, steel, aluminum, and others.


  • What types of industries use Laser Printers for Pipe? What types of industries use Laser Printers for Pipe?

    Laser Printers for Pipe are commonly used in industries such as construction, oil and gas, plumbing, and manufacturing.


  • Can a Laser Printer for Pipe print multiple colors? Can a Laser Printer for Pipe print multiple colors?

    No, Laser Printers for Pipe typically can't print multiple colors like inkjet printers, as they use a single-color laser beam to mark information onto the surface of the pipe.
