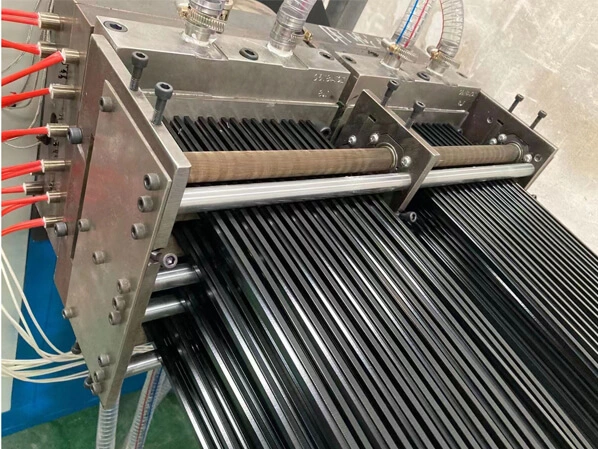

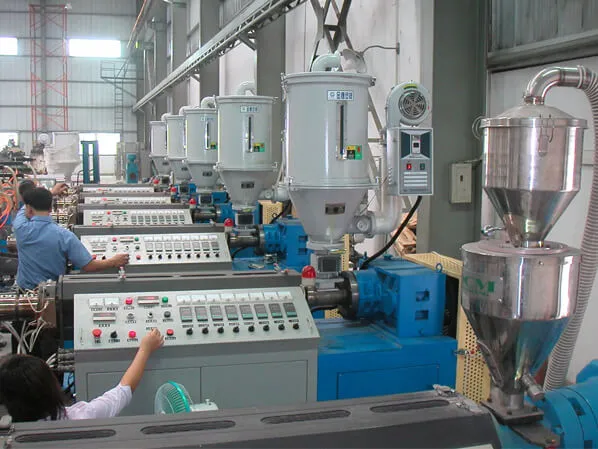

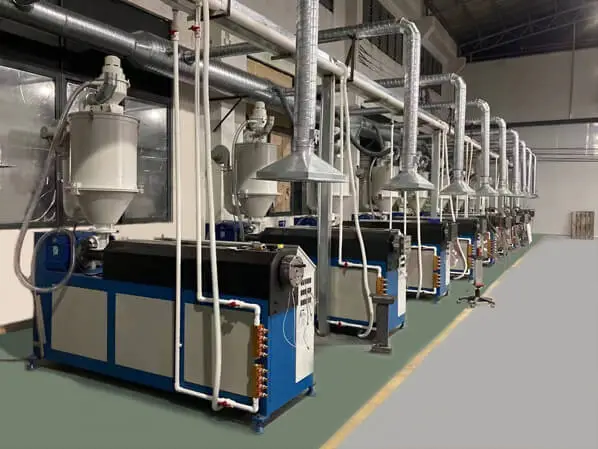

At present, the production line has been very mature, according to the different needs of customers equipped with different production capacity equipment, commonly used screw diameter 55mm, 65mm, 70mm, 80mm. Daily production ranges from 500 kg to 2000 kg. Extrusion die is composed of hot die + cold die, according to the product model size design into a mould for 28pcs, 60pcs, 80pcs, 120pcs, 200pcs and 300pcs and other different extrusion quantity, thus improving the production efficiency and capacity of the equipment. The production line is equipped with automatic cutting machine, saw blade cutting, simple and convenient, smooth incision. or also can add rolling machines for normally requirements.

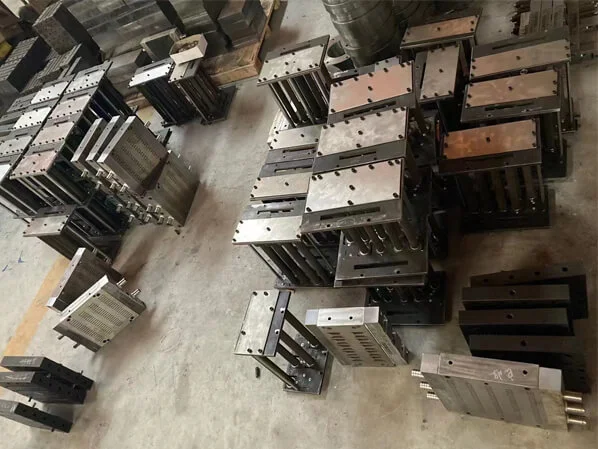

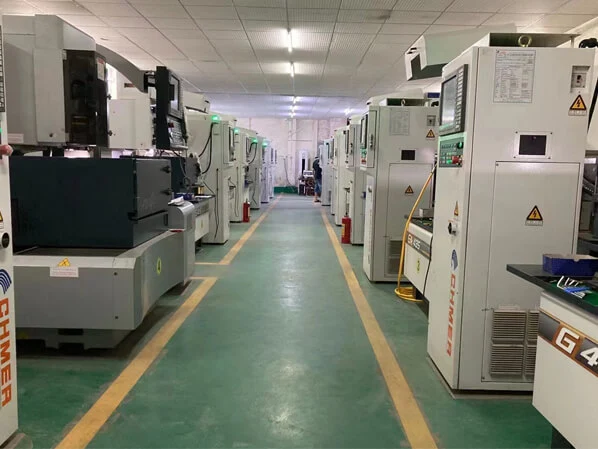

We also have dozens of mold production equipment, according to customer requirements to customize a variety of molds.
|Screw Design||Single-screw||Screw Material||38CrMoALA|
|Screw diameter (mm)||60||Screw L/D Ratio||30：1|
|Screw Speed (rpm)||80 rpm||Dimension(L*W*H)||20*3*2.5m|
|Voltage||380V 50Hz(customization)||Power (kW)||60|
|Warranty of core components||15 months||Core Components||Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw|
|After Warranty Service||Video technical support, Online support, Spare parts, Field maintenance and repair service|
|Output (kg/h):||100 - 500 kg/h||Certification||CE CS IOS|

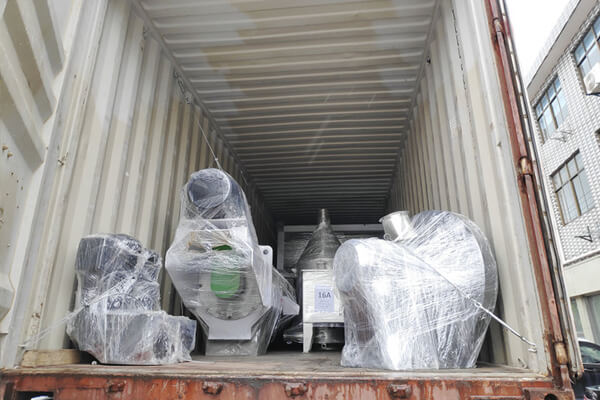

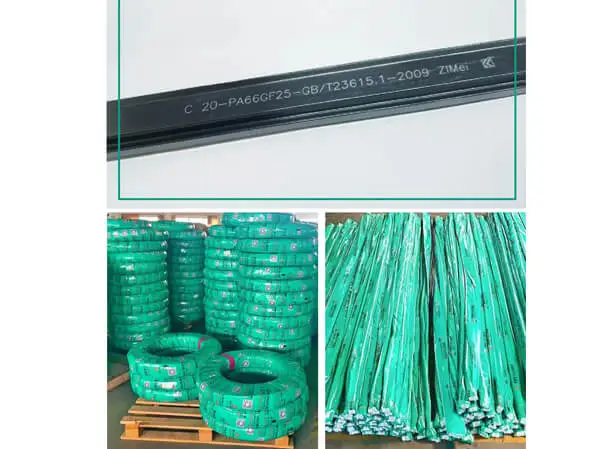

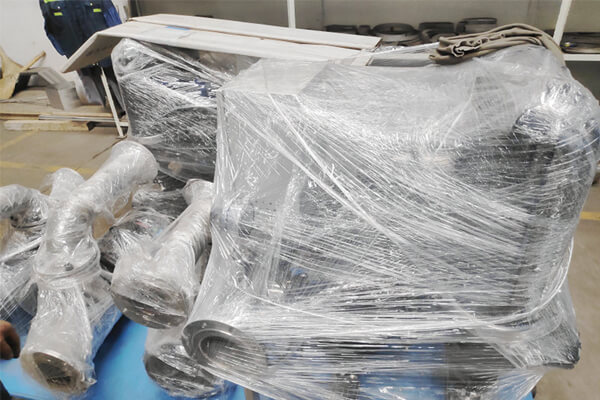

wooden pallet, wooden box, film packing, standard sea freight packing for PA66 GF25 Polyamide profile thermal break strip extrusion making machine.
